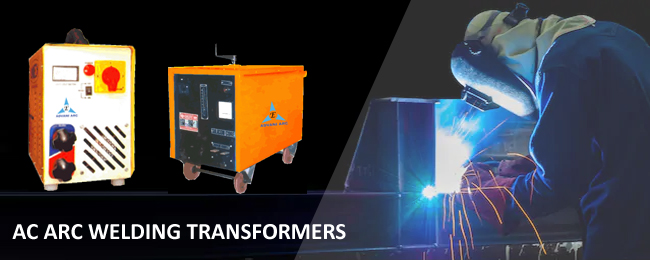

AC ARC WELDING TRANSFORMERS

Technical Specifications
MODEL UNIT ASCI - 11 ASCI - 13 ASCI - 14 ASCI - 15 ASCI - 16 ASCI - 17 ASCI - 18 ASCI - 19 AWM 400ST
Output Current Range Amps 50-150 50-250 40-350 50-450 70-600 50-350 60-450 80-600 40-400
Max. Cont. Hand welding Current at 60% Duty Cycle Amps. 150 250 350 450 600 350 450 600 400
Open Circuit Voltage Volts 50 60 65 65 75 65 65 75 90
KVA at 60% Duty Cycle KVA 7.5 15 22.75 29.25 45 22.75 29.25 45 36
Input Supply Volts 220 Volts 220/440 Volts 220/440 Volts 415 Volts Two Phase 415 Volts Two Phase 415 Volts Three Phase 415 Volts Three Phase 415 Volts Three Phase 415 Volts Two Phase
Electrode Size mm 2.0 - 3.15 2.5 - 3.15 2.5 - 4.0 3.15 - 5.0 3.15 - 6.0 3.15 - 4.0 3.15 - 5.0 3.15 - 6.0 2.5 - 6.0

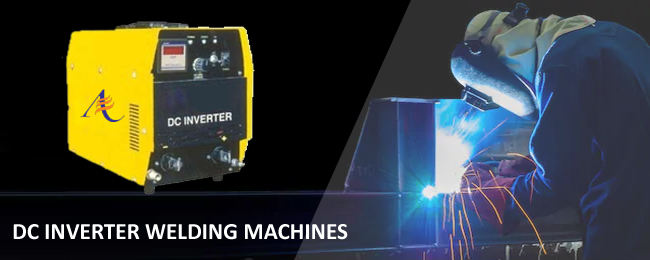

DC INVERTER MACHINES

Technical Specifications
MODEL AIDC - 160 AIDC - 200 AIDC - 300 AIDC - 400 AIDC - 600
Input I PH 220V ± 10% I PH 220V ± 10% I PH or IIIPH 220 or 415V ± 10% III PH 415V ± 10% III PH 415V ± 10%
Output Current 5 - 160 5 - 200 5 - 300 10 - 400 25 - 600
Open Cicuit Voltage 100 V 100 V 100 / 65 V 65 V 65 V
Output Current 60% D.C. 160 200 300 400 600
Output Current 100 D.C. 110 125 190 325 450
Class of Insulation H H H H H
Cooling F-air F-air F-air F-air F-air
Electrodes Size in mm 2 - 3.15 2 - 3.15 2 - 4 2 - 5 2 - 6.3
Weight 9 Kg 12 Kg 18 Kg 30 Kg 50 Kg

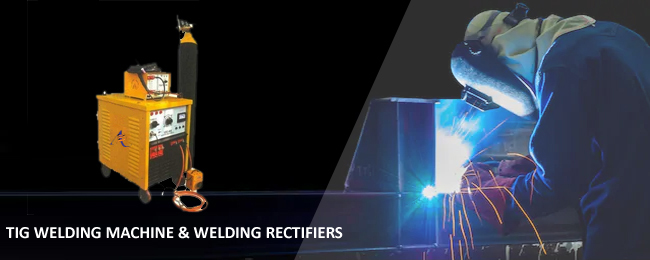

TIG WELDING MACHINE / DC WELDING RECTIFIERS

Technical Specifications
Model Unit ADC - 200 ADC - 300 ADC - 400 ADC - 500 ADC - 600
Output Current Range Amps 25 - 200 30 - 300 30 - 400 40 - 500 50 - 600
Max. Cont. Hand Welding Current at 60% Duty Cycle Amps 200 300 400 500 600
Max. Auto Welding Current at 100% Duty Cycle Amps 150 220 300 375 450
Open Circuit Voltage Volts 80 85 90 90 90
Rating:-
* KVA as per ISI
* Maximum KVA		 KVA
KVA 		5.6
13		 9.6
19 		14.40
25 		20.00
36		 26.4
42
INPUT Supply:-
* Voltage
* Phase
* Frequency		 Volt

Nos.
Hz		 380 / 440
3
50 		380 / 440
3
50 		380 / 440
3
50 		380 / 440
3
50 		380 / 440
3
50
Electrode Size Range mm 2.5 - 400 2.5 - 400 3.15 - 5.00 3.15 - 5.00 3.15 - 6.30
Insulation Class F F F F F
Cooling Type Forced Air Cooling

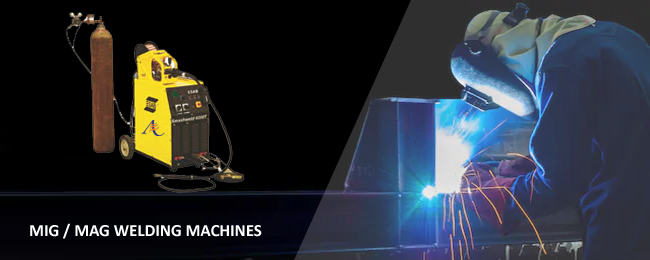

MIG / MAG WELDING MACHINES

Power Source
Model Unit AMW - 250 AMW - 400 AMW - 600
Output Current Range Amps 25 - 250 30 - 400 40 - 600
Max. Continuous welding current:
at 60% duty cycle
at 100% duty cycle
Amps
Amps
250
195
400
315
600
450
Open Circuit Voltage Volts 18 - 42 20 - 55 22 - 64
Input Supply Volts 415 Volts, 3 Phase, 50 Hz
Max. Input Current at rated output with 415 Volts. Amps 13 21 25
Rated KVA if 60% duty cycle KVA 9.5 20.5 30
No. of voltage steps. No's. 10 12 8
Type of Cooling Type Forced Air Cooled
Class of Insulation Type Class 'F'
Dimensions (Approx) LxWxH mm 525 x 425 x 525 575 x 475 x 525 575 x 475 x 525
Weight ( Approx. ) Kgs 85 125 165
Wire Feeder
Model Unit AMF - 25 AMF - 40 AMF - 60
Wire Diameter:
Mild Steel
Stainless Steel
Aluminium
mm
mm
mm
0.8 - 1.0
0.8 - 1.0
1.0 - 1.2

30 - 400

40 - 600
Wire Drive Motor Type Permanent Magnet DC Motor
Drive System Type 2 Roll 2 Roll 2 Roll
Spool Size dia x bore x wt. mm 300mm x 50mm x 15Kg.
Weight Kgs 10 11.5 11.5

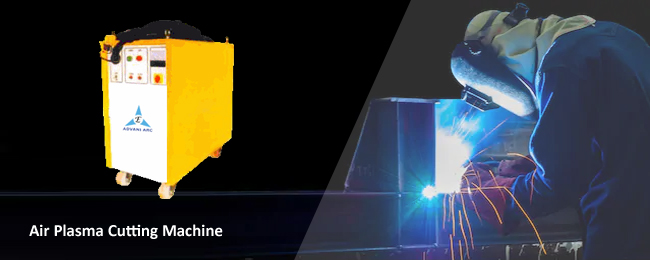

AIR PLASMA CUTTING MACHINES

Technical Specifications
Model APC -6 APC - 10 APC - 16 APC - 30 APC - 40 APC - 50
Primary Voltage 380 - 440V
3 Phase 50Hz		 380 - 440V
3 Phase 50Hz		 380 - 440V
3 Phase 50Hz		 380 - 440V
3 Phase 50Hz		 380 - 440V
3 Phase 50Hz		 380 - 440V
3 Phase 50Hz
Secondary 260 - 280V 260 - 280V 260 - 280V 260 - 280V 260 - 280V 260 - 280V
Line Current 12 Amp 24 Amp 35 Amp 50 Amp 68 Amp 80 Amp
ARC Current 40 Amp 60 Amp 80 Amp 100 Amp 150 Amp 170 Amp
O.C.V.
(No Load)		 300 - 320 VDC 300 - 320 VDC 300 - 320 VDC 300 - 320 VDC 300 - 320 VDC 300 - 320 VDC
Power Rating 6.8 KW 13.5 KW 20 KW 28.5 KW 38.5 KW 45.5 KW
Insulation F Class F Class F Class
Duty Cycle Current of 40 AMP 100% at full load current of 40 AMP 100% at full load current of 60 AMP 100% at full load current of 80 AMP 100% at full load current of 100 AMP 100% at full load current of 150 AMP 100% at full load current of 170 AMP
Cutting Capacity for SS Clean 6 mm 15 mm 20 mm 35 mm 45 mm 60 mm
Cut for SS Parting Cu 10 mm 20 mm 30 mm 45 mm 55 mm 70 mm
Application:

Air Plasma can be used to cut following metals. Mid steels, Stainless Steel, Cation and Alloy Steel Aluminium and its alloys, Copper Casting, Bronze, Brass, Manganese Steel and Special Alloys etc.

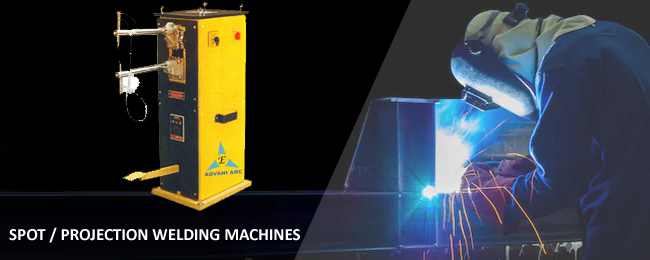

SPOT / PROJECTION WELDING MACHINES

Technical Specifications
Model (KTS) 3.5 KVA 5 KVA 7.5 KVA 10 KVA 15 KVA 20 KVA 25 KVA 35 KVA
Throat Depth (mm) 150 - 200 150 - 200 200 - 250 200 - 250 250 - 300 250 - 300 300 - 350 300 - 350
Cooloing Transformer
(Arms Electrodes )
Air - Water
Range of Welding Voltage
8 steps rotary switch 2 - 6V
Max Sheet size to be welded at 50% Duty cycle 0.8 mm 1 mm 1.5 mm 2 mm 3 mm 4 mm 4 mm 5 mm
Body height in inch 25 42 44 46 46 50 50 50
Timer delay relay on the demand Yes
KVA at 50% duty cycle 3.5 5 7.5 10 15 20 25 35
Max. available short cicuit Current at throat depth
300 mm( Amp ) 3500 5000 7500 9500 10500 16000 20000 30000
400 mm( Amp ) 2500 3500 5500 7500 10000 14000 15000 25000
500 mm( Amp ) 2000 3000 4000 6000 9500 12000 12000 18000
