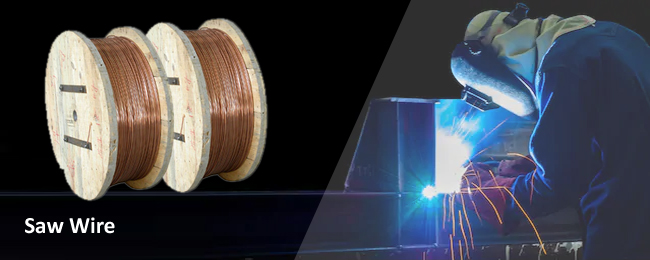

Saw Wire

ADMERGE EL 12

Classifications
  • AWS A5.17 - 80 : EL - 12

Characteristics

A medium manganese alloyed copper coated steel wire for submerged arc welding and electroslag welding of medium and high tensile steels. Excellent ductility, crack resistant and good machinability.

Applications

Suitable for high speed lap welds, built-up or repair welding prior to machining or cladding operations.

Typical Weld Metal Composition
Element Percentage
C 0.10 Max
Mn 0.80 - 1.10
Si 0.08-0.10
P 0.030 Max
S 0.030 Max
S 0.20-0.35
Typical Mechanical Properties of all Weld Metal
Tensile Strength Yield Strength Elongation % (L=4d) Charpy Impact Value at 0°C
410 - 550 MPa 320 - 380 MPa 20-23 27-30J
Current Range & Packing Data
Size mm Dia x Length Current Range (Amps) AC / DC(+) Kgs Per Bundle
1.6 180 - 450 25
2.0 200-400 25
2.5 250-450 25
3.2 350-600 25
4.0 500-800 25
5.0 700-1000 25

ADMERGE EH 14

Classifications
  • AWS A5.17 : EH - 14

Characteristics

A copper coated manganese alloyed semi-killed electrode for Sub merged Arc Welding (SAW) of medium and high tensile steels. Joining big sheets, high deposition rate and penetration bring about effective welding, good beed with high mechanical properties.

Typical Weld Metal Composition
Element Percentage
C 0.13 Max
Mn 1.40-1.60
Si 0.08 Max
P 0.035 Max
S 0.035 Max
Cr 0.20
Ni 0.030
Cu 0.20-0.35
Typical Mechanical Properties of all Weld Metal
Tensile Strength Yield Strength Elongation % (L=4d) Charpy Impact Value at 0°C
410 - 550 MPa 320-380 20-23 27-30 J
CURRENT RANGE & PACKING DATA :
Size mm Dia x Length Current Range (Amps) AC / DC(+) Kgs Per Bundle
1.6 180 - 450 25
2.0 200-400 25
2.5 250-450 25
3.2 350-600 25
4.0 500-800 25
5.0 700-1000 25
